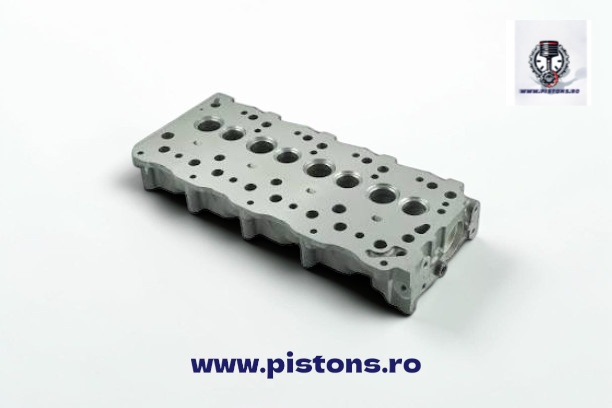

  • Chiuloasa Neechipata Motor Isuzu 4LB1 — Cod OEM 8-97044-179-2 | Pistons.ro - Img 1

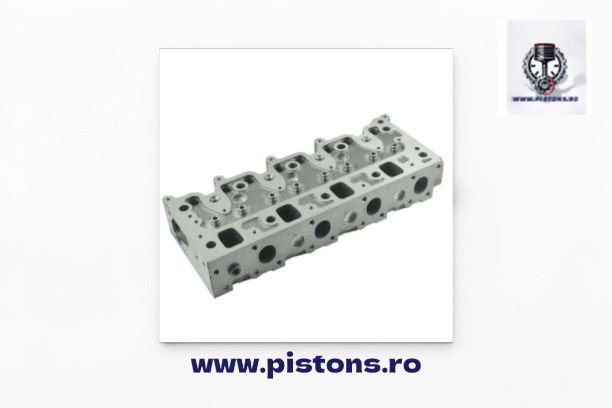

  • Chiuloasa Neechipata Motor Isuzu 4LB1 — Cod OEM 8-97044-179-2 | Pistons.ro - Img 2

Chiuloasa Neechipata Motor Isuzu 4LB1 — Cod OEM 8-97044-179-2 | Pistons.ro

Isuzu
2.990,00 RON (fara TVA) 3.390,00 RON
Costurile de livrare nu sunt incluse
Isuzu
Cumpara acum, plateste mai tarziu de la 79,37 RON / Luna Detalii aici
Cod produs - SKU ISU.CH.4LB1
Stoc limitat
Adauga la Favorite

Descriere

Chiuloasa neechipata pentru motorul industrial Isuzu 4LB1 este componenta esentiala care sigileaza camera de ardere si sustine ansamblul de supape. Aceasta chiulasa este fabricata la standarde OEM, oferind compatibilitate precisa cu motoarele Isuzu 4LB1 — un motor diesel industrial in 4 cilindri, racit cu apa, cu capacitate de 1499 cc si raport de compresie 22:1 .

Disponibila acum pe Pistons.ro cu livrare rapida in Romania.

Specificatii Tehnice

  • Cod OEM: 8-97044-179-2

  • Motor compatibil: Isuzu 4LB1 / 4LB1T (4 cilindri, OHV, diesel)

  • Capacitate cilindrica: 1499 cc

  • Alezaj × Cursa: 77.4 × 79.7 mm

  • Ordine de aprindere: 1-3-4-2

  • Greutate uscata motor: aprox. 130 kg

  • Turatie relanti: 850 rpm

  • Presiune compresie (standard): 31.0 kg/cm²

Utilaje Compatibile

Motorul Isuzu 4LB1 este utilizat pe scară largă in echipamente industriale si de constructii. Pe baza listelor de compatibilitate ale pieselor pentru acest motor, chiuloasa este potrivita pentru urmatoarele utilaje :

Excavatoare pe senile:

  • Airman: AX10, AX15, AX30, AX40, AX45, AX50

  • Doosan: SOLAR 030

  • Hitachi: EX8, EX10, EX15, EX40, EX45, EX50

  • IHI: 16, 17, 18, 20, 28, IS15, IS18, IS20, IS25, IS28, IS40JX

  • JCB: 808

  • Kobelco: SK045

  • Komatsu: PC20, PC25, PC30, PC40

  • Kubota: KH41, KH51

  • Sumitomo: LS280

  • Takeuchi: TB010, TB014

  • Yanmar: B25

Buldozere:

  • Mitsubishi: BD2G

Generatoare:

  • Denyo: DCA-10

Instructiuni de Montaj

Montajul chiulasei necesita atentie deosebita pentru a asigura etansarea corecta si durabilitatea motorului. Iata pasii esentiali si specificatiile din manualul de service Isuzu :

1. Pregatire

  • Curatati perfect suprafata blocului motor — fara impuritati, zgarieturi sau resturi de garnitura veche .

  • Verificati planeitatea chiulasei; deformarile necesita rectificare sau inlocuire.

  • Folositi intotdeauna o garnitura de chiulasa noua (se schimba obligatoriu) .

2. Montaj si Strangere

  • Lubrifiati suruburile chiulasei cu ulei de motor.

  • Strangeti suruburile in secventa corecta, de la centru spre exterior (consultati schema din manual) .

  • Cuplu de strangere (M12 × 1.5):

    • Etapa 1: 8.5 – 9.5 kg·m (61 – 69 ft·lbs)

    • Etapa 2: Rotire suplimentara 60° – 90°

3. Reglaj Supape (dupa montaj)

  • Joc supape (la rece): 0.4 mm (intake si exhaust)

  • Ordine de aprindere: 1-3-4-2

  • Avans injectie: 16° BTDC (la oprire)

4. Testare

  • Test hidraulic chiulasa: 5 kg/cm² timp de 3 minute .

Coduri OEM / Cross-Reference

Tip Cod
Cod principal 8-97044-179-2
Cod motor 4LB1

This bare cylinder head is designed for the Isuzu 4LB1 industrial diesel engine, serving as the critical upper component that seals the combustion chamber and supports the valve train. Manufactured to OEM specifications, it ensures precise fitment for Isuzu 4LB1 engines — a 4-cylinder, water-cooled, OHV diesel engine with 1499 cc displacement and 22:1 compression ratio .

Now available on Pistons.ro with fast shipping.

Technical Specifications

  • OEM Code: 8-97044-179-2

  • Compatible Engine: Isuzu 4LB1 / 4LB1T (4-cylinder, OHV, diesel)

  • Displacement: 1499 cc

  • Bore × Stroke: 77.4 × 79.7 mm

  • Firing Order: 1-3-4-2

  • Dry Weight: approx. 130 kg

  • Idling Speed: 850 rpm

  • Compression Pressure (Standard): 31.0 kg/cm²

Compatible Equipment

The Isuzu 4LB1 engine is widely used in industrial and construction equipment. Based on parts compatibility listings for this engine, the cylinder head fits the following machines :

Crawler Excavators:

  • Airman: AX10, AX15, AX30, AX40, AX45, AX50

  • Doosan: SOLAR 030

  • Hitachi: EX8, EX10, EX15, EX40, EX45, EX50

  • IHI: 16, 17, 18, 20, 28, IS15, IS18, IS20, IS25, IS28, IS40JX

  • JCB: 808

  • Kobelco: SK045

  • Komatsu: PC20, PC25, PC30, PC40

  • Kubota: KH41, KH51

  • Sumitomo: LS280

  • Takeuchi: TB010, TB014

  • Yanmar: B25

Bulldozers:

  • Mitsubishi: BD2G

Generators:

  • Denyo: DCA-10

Installation Instructions

Installing the cylinder head requires careful attention to ensure proper sealing and engine durability. Key steps and specifications from the Isuzu service manual :

1. Preparation

  • Thoroughly clean the engine block surface — no impurities, scratches, or old gasket residue .

  • Check cylinder head flatness; warping requires resurfacing or replacement.

  • Always use a new head gasket (mandatory replacement) .

2. Installation & Tightening

  • Lubricate head bolts with engine oil.

  • Tighten bolts in the correct sequence, from center outward (refer to manual diagram) .

  • Tightening torque (M12 × 1.5):

    • Stage 1: 8.5 – 9.5 kg·m (61 – 69 ft·lbs)

    • Stage 2: Additional rotation 60° – 90°

3. Valve Adjustment (after installation)

  • Valve clearance (cold): 0.4 mm (intake and exhaust)

  • Firing order: 1-3-4-2

  • Injection timing: 16° BTDC (at stop)

4. Testing

  • Cylinder head water pressure test: 5 kg/cm² for 3 minutes .

OEM Codes / Cross-Reference

Type Code
Main Code 8-97044-179-2
Engine Code 4LB1

Detalii

SKU
ISU.CH.4LB1
Categorii
Chiuloasa
Brand
Isuzu
Stare produs
Nou - Garantie: 12/24 luni
