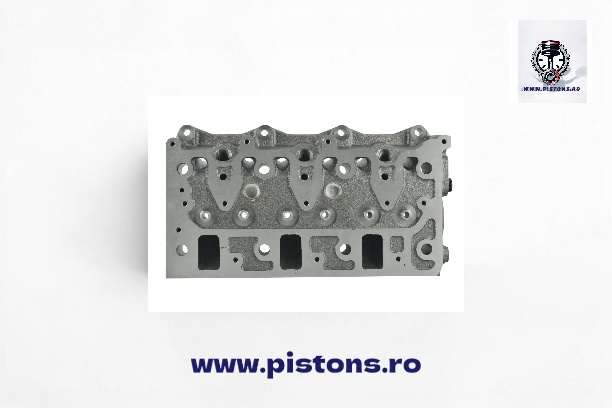

  • Chiuloasa Neechipata Motor Isuzu 3LD1 — Cod OEM 8971634013 | Pistons.ro - Img 1

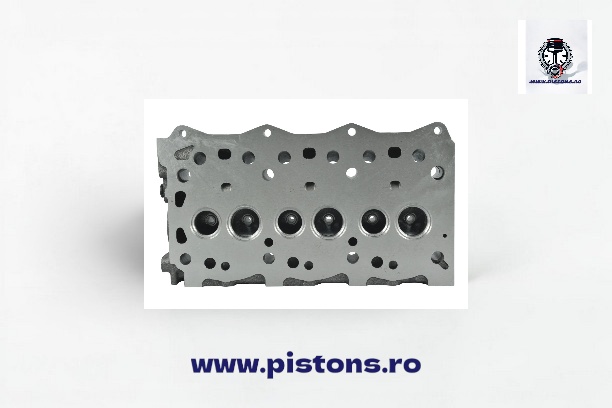

  • Chiuloasa Neechipata Motor Isuzu 3LD1 — Cod OEM 8971634013 | Pistons.ro - Img 2

Chiuloasa Neechipata Motor Isuzu 3LD1 — Cod OEM 8971634013 | Pistons.ro

Isuzu
2.790,00 RON (fara TVA) 3.190,00 RON
Costurile de livrare nu sunt incluse
Isuzu
Cumpara acum, plateste mai tarziu de la 74,17 RON / Luna Detalii aici
Cod produs - SKU ISU.CH.3LD1
Stoc limitat
Adauga la Favorite

Descriere

Chiuloasa neechipata pentru motorul industrial Isuzu 3LD1 este componenta esentiala care sigileaza camera de ardere si sustine ansamblul de supape. Aceasta chiulasa este fabricata la standarde OEM, oferind compatibilitate precisa cu motoarele Isuzu 3LD1 — un motor diesel industrial in 3 cilindri, racit cu apa, cu capacitate de 1496 cc si raport de compresie 22:1 .

Disponibila acum pe Pistons.ro cu livrare rapida in Romania.

Specificatii Tehnice

  • Cod OEM: 8971634013

  • Coduri alternative: 8-97163401-3, 897163-4013, 8971634012, 8-97102-512-0, 8971634010, 8971634011

  • Motor compatibil: Isuzu 3LD1 (3 cilindri, OHV, diesel, injectie indirecta)

  • Capacitate cilindrica: 1496 cc (1.496 L)

  • Alezaj × Cursa: 83.1 × 92 mm

  • Ordine de aprindere: 1-3-2

  • Greutate uscata motor: 132 kg

  • Turatie relanti: 850 rpm

  • Presiune injectie: 135 kg/cm²

  • Joc supape (la rece): 0.20 mm

  • Putere maxima: 29.0 kW / 3400 rpm

Utilaje Compatibile

Motorul Isuzu 3LD1 este utilizat pe scară largă in echipamente compacte de constructii, agricole si industriale. Pe baza listelor de compatibilitate ale pieselor pentru acest motor, chiuloasa este potrivita pentru urmatoarele utilaje:

Excavatoare pe senile:

  • Fiat-Hitachi: EX32, EX32U, EX35U, EX35UNA, EX27U, EX27UNA, EX30U

  • IHI: 28N, 35J (Ihimer 35J, Ihimer 28N)

  • Hitachi: EX30, EX35, EX40, EX50 (mini-excavatoare)

  • Doosan: Solar Plus

  • Eurocomach: Piccini Jolly 304

Dumpers pe senile:

  • IHI: IC30 series (capacitate 2500 kg, motor Isuzu 3LD1, putere 23.5 kW)

Aplicatii industriale:

  • Echipamente agricole compacte (tractoare mici, incarcatoare, pulverizatoare)

  • Generatoare mobile

  • Stivuitoare

  • Pompe industriale si compresoare

Instructiuni de Montaj

Montajul chiulasei necesita atentie deosebita pentru a asigura etansarea corecta si durabilitatea motorului. Iata pasii esentiali din manualul de service Isuzu :

1. Pregatire

  • Curatati perfect suprafata blocului motor — fara impuritati, zgarieturi sau resturi de garnitura veche

  • Verificati planeitatea chiulasei; deformarile maxime admise sunt 0.15 mm

  • Folositi intotdeauna o garnitura de chiulasa noua (se schimba obligatoriu)

2. Montaj si Strangere

  • Lubrifiati suruburile chiulasei cu ulei de motor

  • Strangeti suruburile in secventa corecta, de la centru spre exterior

  • Folositi metoda de strangere unghiulara (Angular Tightening Method)

3. Reglaj Supape (dupa montaj)

  • Joc supape (la rece): 0.20 mm (intake si exhaust)

  • Ordine de aprindere: 1-3-2

4. Testare

  • Verificati planeitatea chiulasei inainte de montaj

  • Asigurati-va ca suprafetele de etansare sunt curate si fara defecte

Coduri OEM / Cross-Reference

Tip Cod
Cod principal 8971634013
Coduri alternative 8-97163401-3, 897163-4013, 8971634012, 8-97102-512-0, 8971634010, 8971634011

This bare cylinder head is designed for the Isuzu 3LD1 industrial diesel engine, serving as the critical upper component that seals the combustion chamber and supports the valve train. Manufactured to OEM specifications, it ensures precise fitment for Isuzu 3LD1 engines — a 3-cylinder, water-cooled, OHV diesel engine with 1496 cc displacement and 22:1 compression ratio .

Now available on Pistons.ro with fast shipping.

Technical Specifications

  • OEM Code: 8971634013

  • Alternative Codes: 8-97163401-3, 897163-4013, 8971634012, 8-97102-512-0, 8971634010, 8971634011

  • Compatible Engine: Isuzu 3LD1 (3-cylinder, OHV, diesel, indirect injection)

  • Displacement: 1496 cc (1.496 L)

  • Bore × Stroke: 83.1 × 92 mm

  • Firing Order: 1-3-2

  • Dry Weight: 132 kg

  • Idling Speed: 850 rpm

  • Injection Pressure: 135 kg/cm²

  • Valve Clearance (cold): 0.20 mm

  • Maximum Power: 29.0 kW / 3400 rpm

Compatible Equipment

The Isuzu 3LD1 engine is widely used in compact construction, agricultural, and industrial equipment. Based on parts compatibility listings for this engine, the cylinder head fits the following machines:

Crawler Excavators:

  • Fiat-Hitachi: EX32, EX32U, EX35U, EX35UNA, EX27U, EX27UNA, EX30U

  • IHI: 28N, 35J (Ihimer 35J, Ihimer 28N)

  • Hitachi: EX30, EX35, EX40, EX50 (mini excavators)

  • Doosan: Solar Plus

  • Eurocomach: Piccini Jolly 304

Crawler Dumpers:

  • IHI: IC30 series (2500 kg capacity, Isuzu 3LD1 engine, 23.5 kW power)

Industrial Applications:

  • Compact agricultural equipment (small tractors, loaders, sprayers)

  • Mobile generators

  • Forklifts

  • Industrial pumps and compressors

Installation Instructions

Installing the cylinder head requires careful attention to ensure proper sealing and engine durability. Key steps from the Isuzu service manual :

1. Preparation

  • Thoroughly clean the engine block surface — no impurities, scratches, or old gasket residue

  • Check cylinder head flatness; maximum warpage allowed is 0.15 mm

  • Always use a new head gasket (mandatory replacement)

2. Installation & Tightening

  • Lubricate head bolts with engine oil

  • Tighten bolts in the correct sequence, from center outward

  • Use the Angular Tightening Method

3. Valve Adjustment (after installation)

  • Valve clearance (cold): 0.20 mm (intake and exhaust)

  • Firing order: 1-3-2

4. Testing

  • Verify cylinder head flatness before installation

  • Ensure sealing surfaces are clean and free of defects

OEM Codes / Cross-Reference

Type Code
Main Code 8971634013
Alternative Codes 8-97163401-3, 897163-4013, 8971634012, 8-97102-512-0, 8971634010, 8971634011
